10,000 - 55,000 lbs.
When you’re providing tooling, it’s important to take weight capacities into account in order to prevent damage to your positioner.
ALM load capacities are rated for a total load between headstock and tailstock, as well as rotational torque output. Our positioners are rated for a weight distribution of 60-40% between the headstock and the tailstock. The positioners below are designed for a capacity of 10,000 – 55,000 lbs.

Positioners

10-3550A
10,000 lbs.
10 K Elevating Headstock

10-3550A-LT
10,000 lbs.
10 K Elevating Headstock/Low Torque

12-3520A
12,000 lbs.
12 K 3 Axis Elevating Skyhook

15-1000A
15,000 lbs.
15 K Fixed Height Headstock & Tailstock

15-1020A
15,000 lbs.
15 K Fixed Height Headstock with Mobile Tailstock

15-1100A
15,000 lbs.
15 K Fixed Height Headstock with Adjustable Tailstock

15-2920A
15,000 lbs.
15 K Elevating Headstock with Mobile Tailstock

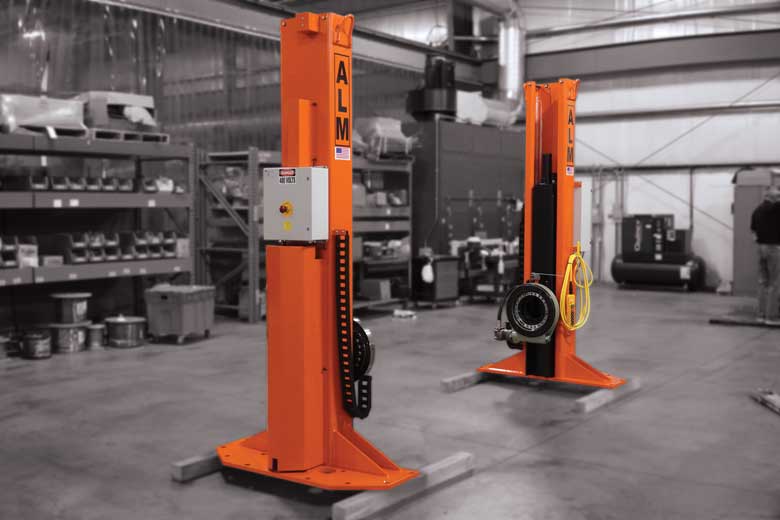

15-3010A
15,000 lbs.
15 K Elevating Headstock & Tailstock

15-3010A-BB
15,000 lbs.
15 K Elevating Headstock & Tailstock/Drop Center

15-3110A
15,000 lbs.
15 K Elevating Portable Headstock & Tailstock

15-3310A
15,000 lbs.
15 K Elevating Headstock with Adjustable Tailstock

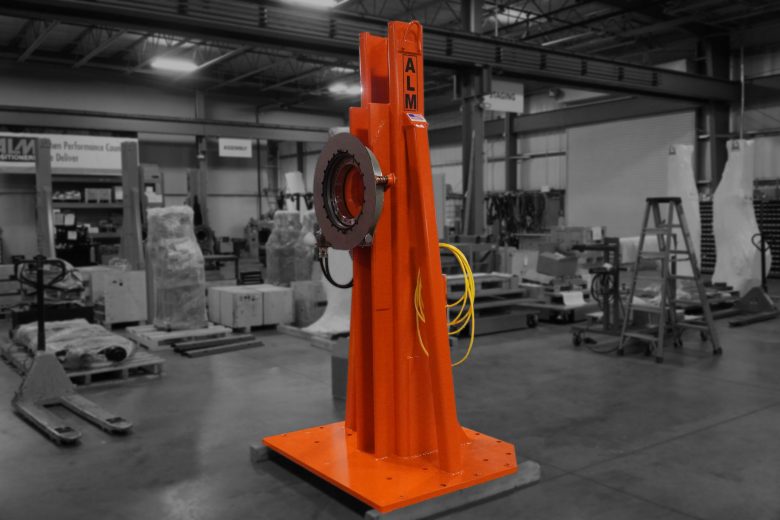

15-5000A
15,000 lbs.
15 K Fixed Height Headstock

25-1000A
25,000 lbs.
25 K Fixed Height Headstock & Tailstock

25-1100A
25,000 lbs.
25 K Fixed Height Headstock with Adjustable Tailstock

25-2920A
25,000 lbs.
25 K Elevating Headstock with Mobile Tailstock

25-3010A
25,000 lbs.
25 K Elevating Headstock & Tailstock

25-3010A-BB
25,000 lbs.
25 K Elevating Headstock & Tailstock/Drop Center

25-3310A
25,000 lbs.
25 K Elevating Headstock with Adjustable Tailstock

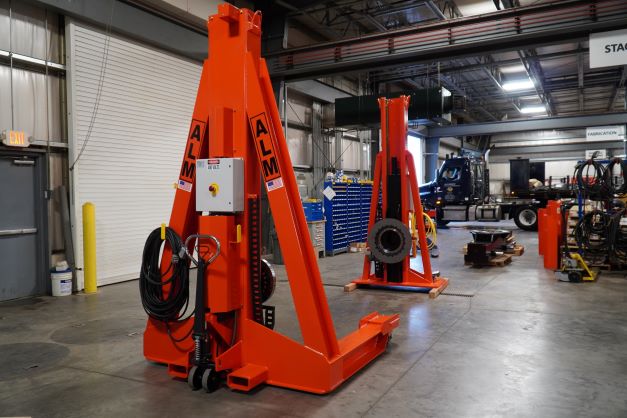

35-3010A
35,000 lbs.
35 K Elevating Headstock & Tailstock

35-3010A-BB
35,000 lbs.
35 K Elevating Headstock & Tailstock/Drop Center

35-3010A-LT
35,000 lbs.
35 K Elevating Headstock & Tailstock/Low Torque

35-3310A
35,000 lbs.
35 K Elevating Headstock with Adjustable Tailstock

35-3310A-LT
35,000 lbs.
35 K Elevating Headstock with Adjustable Tailstock/Low Torque

55-3010A
55,000 lbs.
55 K Elevating Headstock & Tailstock

55-3310A
55,000 lbs.
55 K Elevating Headstock with Adjustable Tailstock
