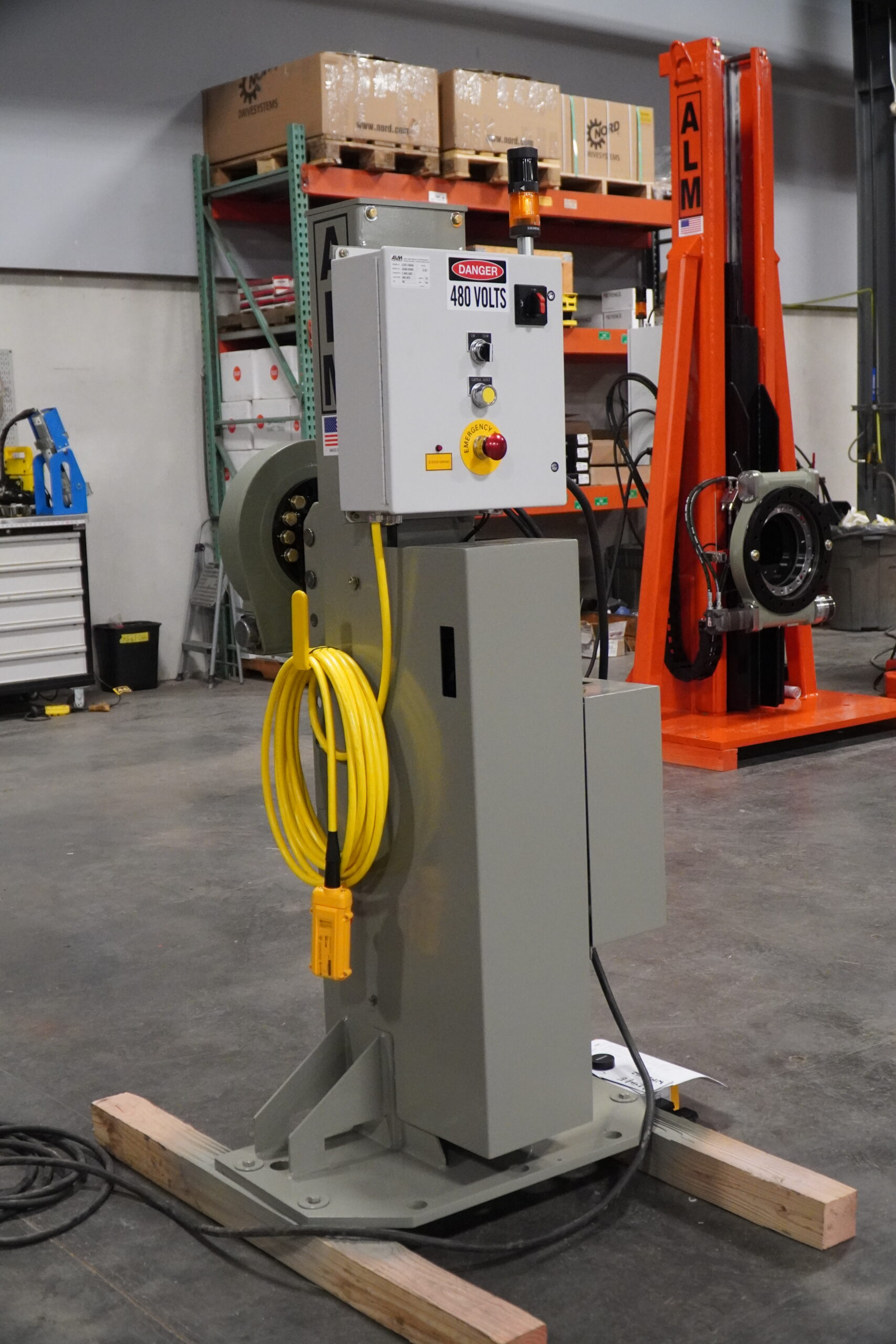

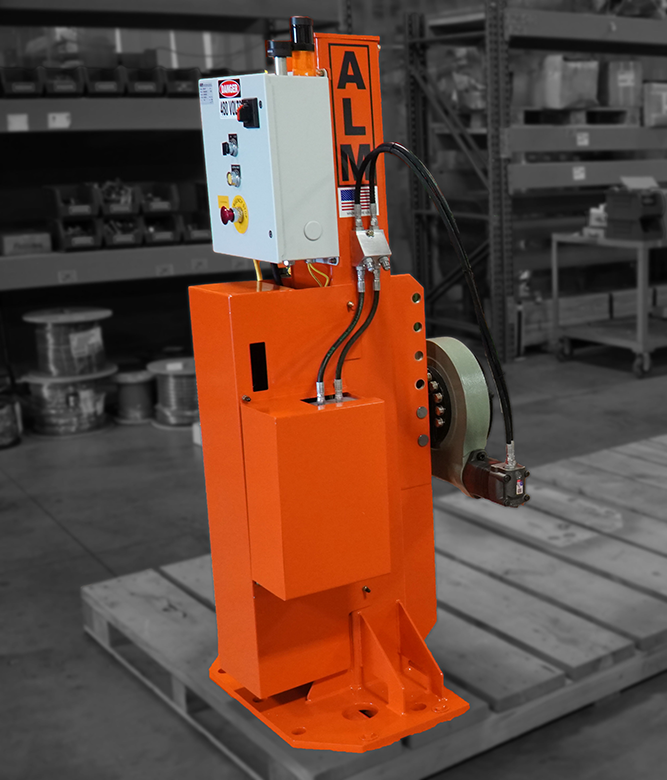

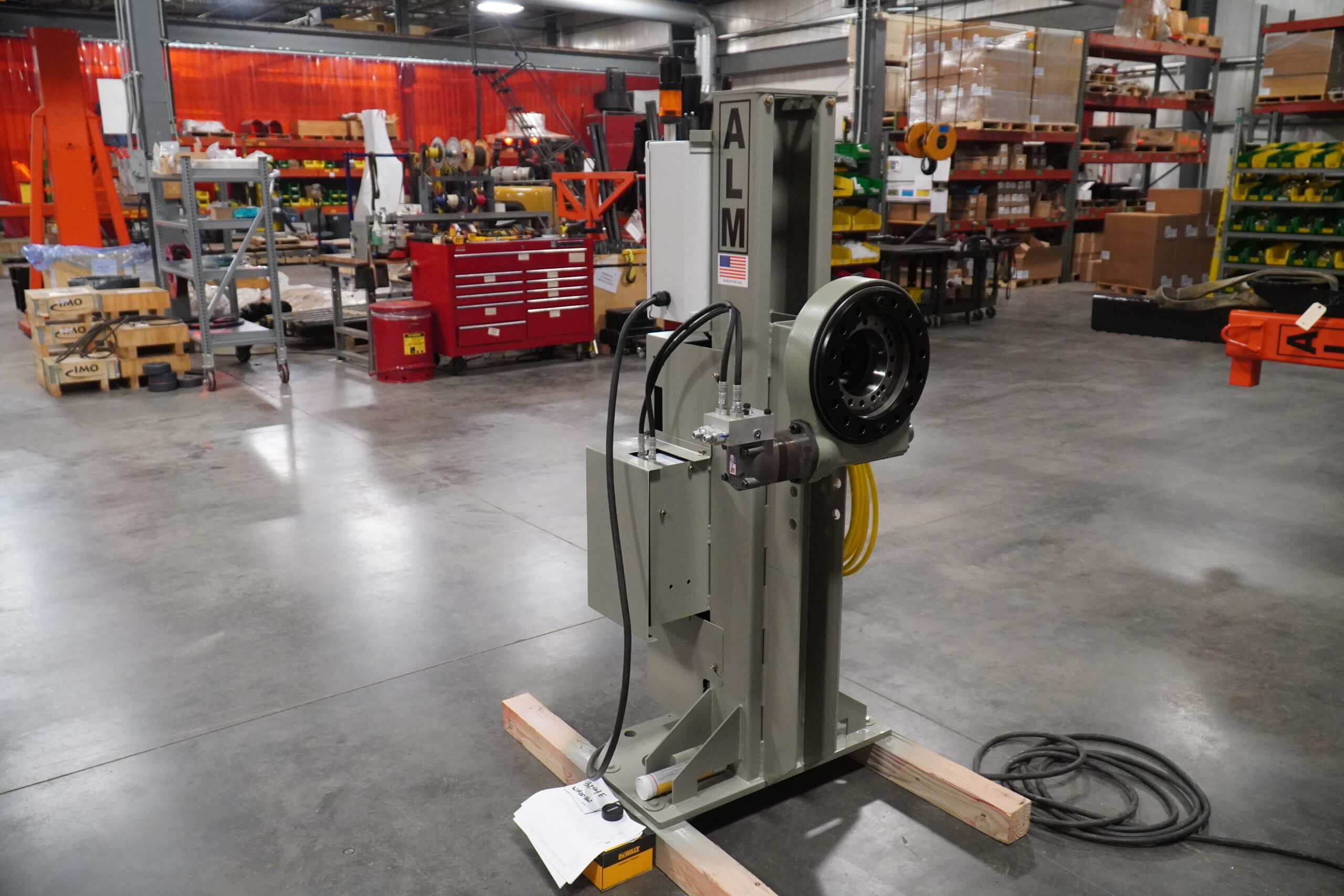

LC01-1000A - Fixed Height Headstock - Rotation Only - Low Capacity

LC01-1000A

Max Capacity

1,000 lbs.

Tilt Torque

42,000 in-lbs.

Tilt Speed

1 RPM

Request a Quote

Product Overview

Fixed Height Headstock Only/Single Column positioners are designed for tilt only applications. Centerline height is manually adjustable by 3” increments via pin attachment points.

Control Platforms

Select your platform:

Non-Programmable

Our non-programmable positioners are ideally suited for required manual control of part positioning for heavy, demanding jobs.

Select

Features: Expand All

E-Stop

Safety shut-off button, conveniently located on each column.

Push-button hydraulic positioning

Our powerful manual push-button hydraulic positioning gives you the ability to elevate and tilt your part.

Redundant safety features, mechanical safety stops, and hydraulic load holding check valve.

Rotary Ground and Target Plate for 2 Axis (400 or 800 AMP)

Eliminates the need to remove ground while positioning the part and allows infinite rotation. Options available to be installed on headstock or tailstock:

400 Amp allows for attachment of (1) ground cable
800 Amp allows for attachment of (2) ground cables

Safety scanner

Safeguard the area around your positioner with an area safety scanner. This protects the operator from the positioner, while in motion. Available options are Keyence (8.4 m) or SICK (9 m).

Single point electrical drop

Power your positioner with a single 480V 3PH electric drop.

Single point shut-off

With a single point shut-off system, switching your positioner off is efficient and simple.

Wired pendant

Our wired operator pendant has 25-foot of reach, making it possible to operate your positioner from various locations around the part.

Wireless pendant

The wireless pendant empowers your welders or assembler to operate the positioner conveniently and is integrated within the safety circuit. The operator has full control of the pendant allowing them to operate the positioner from within any safe zone. The pendant comes with an integrated E-stop circuit.

(This feature is not included on the Integrator user application)
