Fixed Headstock/Mobile Tailstock, Elevating

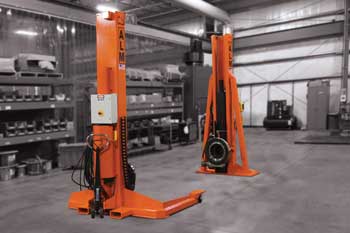

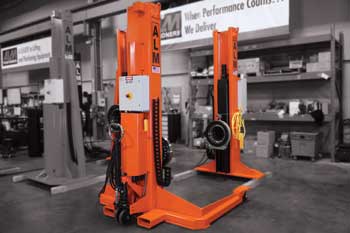

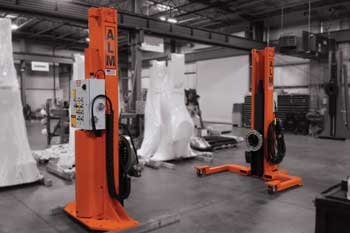

Elevating Fixed Headstock/Mobile Tailstock positioners from ALM Positioners are designed for elevating and tilt applications that require a vertical stroke of 68 inches or less with a variable-length part. In this application, the headstock is bolted to the floor, and the tailstock is a pallet-jack style with the capability to move in and out of the work station with ease.

Maximum Capacity:
8,000 - 35, 000 lbs.
3,628 - 1,5875 kg
Headstock Mounting Footprint:
Fixed
Tailstock Mounting Footprint:
Mobile
Vertical Travel:
68.5"
173 cm
Tilt Torque:
74,000 - 133,600 in/lbs.
8,360 - 15,094 N-m
Tilt Speed:
0.6 - 1 RPM

Request a Quote
