Elevating
Elevating Fixed Headstock/Adjustable Rail Tailstock positioners from ALM Positioners are designed for elevating and tilt applications where the part length varies and requires precision due to a rigid part and/or fixture. In this application, the headstock and rails are bolted to the floor, and the tailstock slides along the rail through manual pushing.
Positioners

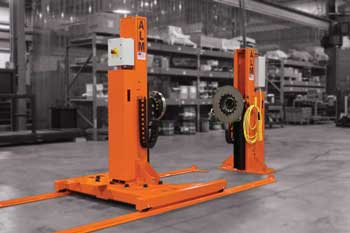

4 K Elevating Headstock with Adjustable Tailstock
LC04-3310
Maximum Capacity:
4,000 lbs.
Vertical Travel:
30"
15 K Elevating Headstock with Adjustable Tailstock
15-3310
Maximum Capacity:
15,000 lbs.
Vertical Travel:
68.5"

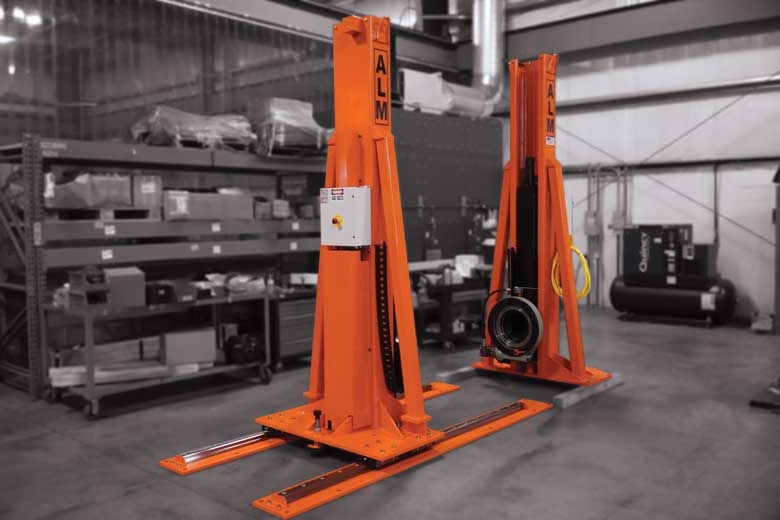

25 K Elevating Headstock with Adjustable Tailstock
25-3310
Maximum Capacity:
25,000 lbs.
Vertical Travel:
68.5"
35 K Elevating Headstock with Adjustable Tailstock
35-3310
Maximum Capacity:
35,000 lbs.
Vertical Travel:
68.5"
35 K Elevating Headstock with Adjustable Tailstock/Low Torque
35-3310-LT
Maximum Capacity:
35,000 lbs.
Vertical Travel:
68.5"
55 K Elevating Headstock with Adjustable Tailstock
55-3310
Maximum Capacity:
55,000 lbs.
Vertical Travel:
73"

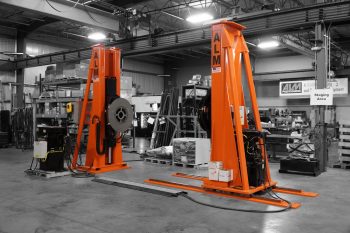

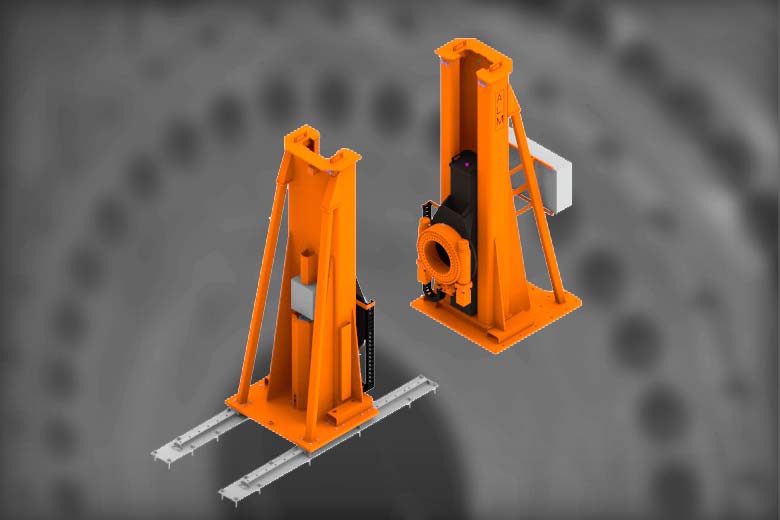

75 K Elevating Headstock with Adjustable Tailstock
75-3310HD
Maximum Capacity:
75,000 lbs.
Vertical Travel:
73"

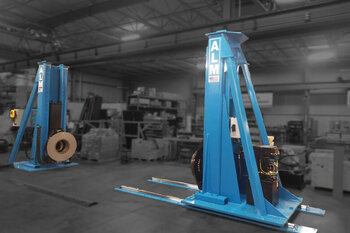

100 K Elevating Headstock with Adjustable Tailstock
100-3310HD
Maximum Capacity:
100,000 lbs.
Vertical Travel:
73"
